Intro

Depuis plusieurs mois, mon installation photovoltaïque Victron a évolué : nouveaux capteurs, nouveaux besoins (Tempo, consommation nocturne, sécurisation du SoC), et surtout une logique de pilotage plus structurée. Plutôt que de maintenir une série d’articles éparpillés autour de Node-RED et de quelques flows historiques, j’ai décidé de repartir sur une base saine : un article unique, complet, et régulièrement maintenu.

L’objectif de ce billet est simple : présenter mon architecture de gestion énergétique Victron, centrée sur Node-RED (collecte, calculs, décisions) et MQTT/Home Assistant (supervision et commandes), avec un focus sur un point clé : déterminer automatiquement une cible de SoC et piloter intelligemment la charge programmée sur une fenêtre nocturne (typique 22h → 6h). Je détaille ici le pourquoi, le comment, et je fournis les éléments concrets pour reproduire l’approche : structure du flow, variables manipulées, topics MQTT, et points de vigilance.

Objectif du flow

Ce flow, nommé « Calcul Cible SOC pour CP », a 3 missions :

  1. Estimer la production PV (aujourd’hui / J+1)
    • récupération VRM côté onduleur PV (AC-coupled) et côté MPPT
    • normalisation (Wh → kWh arrondi)
    • somme des prévisions et publication MQTT
  2. Calculer un SoC cible pour la charge programmée
    • formule simple et robuste : seuil = 120 - 2.5 × prevision_kWh
    • arrondi au pas de 5%, bornage 0–100%
    • possibilité de forçage manuel (ex : CP à X% même si la prévision est bonne)
  3. Piloter CP1 sur Victron (fenêtre 22h–6h)
    • activation/désactivation via une autorisation (Home Assistant)
    • écriture des paramètres CP1 dans Venus OS : Day, Start, Duration, Soc (et un flag autoconsommation si besoin)
    • log synthétique et publication MQTT des valeurs utiles (cible SoC, valid CP, durée, heure début)

Ce flow sert donc à la fois de collecte (prévisions VRM), de traitement (calcul), et de commande (écriture settings Victron) — tout en restant “observable” grâce aux sorties MQTT et au log.

Le flow Node-RED

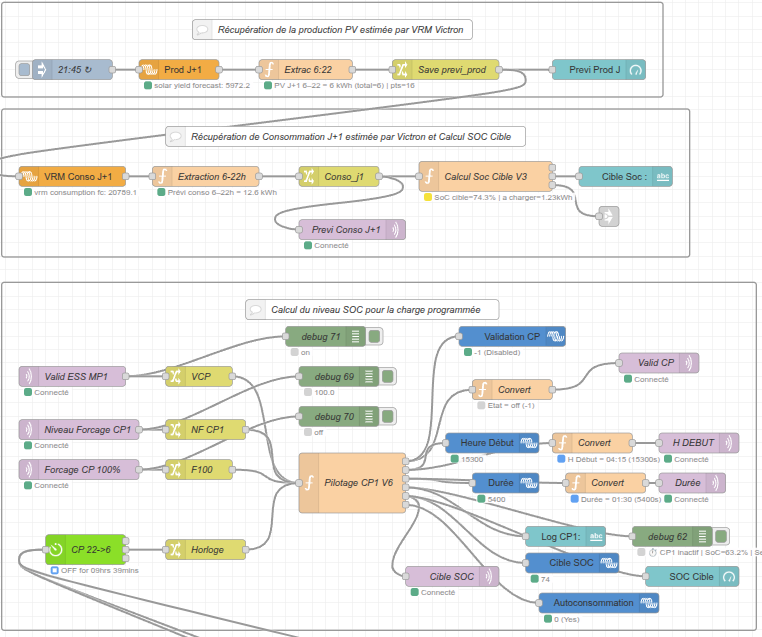

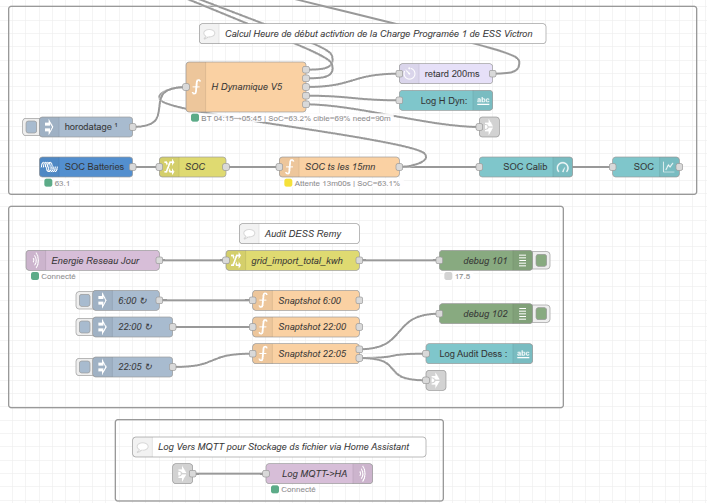

Visualisation du flow

Analyse du flow

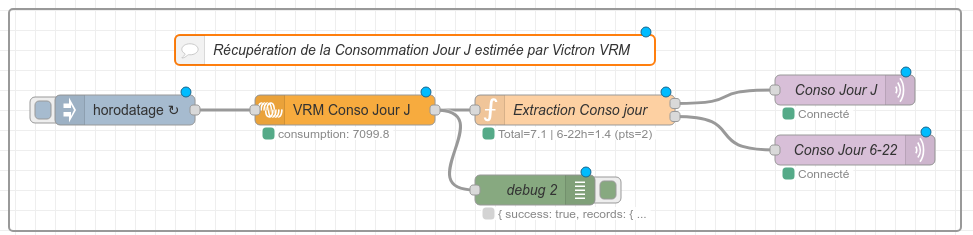

A) Bloc “Estimation de la production PV”

  • Deux nœuds VRM API récupèrent les prévisions de production :
    • PV inverter yield forecast (AC-coupled)
    • PV charger yield forecast (MPPT1)
  • Chaque flux passe dans une fonction de normalisation :
    • extraction du champ VRM totals.*
    • conversion Wh → kWh
    • stockage en variables flow.previmo et flow.previmppt1
  • Une fonction Somme des deux additionne les deux prévisions et publie :
    • mp2/dess_remy/prod_onduleur
    • mp2/dess_remy/prod_mppt1
    • mp2/dess_remy/prod_total (QoS 2 + retain = pratique pour HA)

B) Bloc “Entrées Home Assistant (forçages et autorisations)”

Trois topics MQTT (HA → Node-RED) permettent de reprendre la main :

  • ha/mp2/cp/validcp : autorisation globale de CP (ON/OFF)
  • ha/mp2/cp/forcage100 : forçage manuel actif (ON/OFF)
  • ha/mp2/cp/niveauforcagecp1 : niveau de SoC cible forcé (ex : 80%)

Ces entrées alimentent des variables flow/global consommées par la fonction principale.

C) Bloc “Horloge CP 22h → 6h”

Un BigTimer définit la fenêtre de charge (22:00 → 06:00) et publie un état simple on/off :

  • horloge = 1 quand on est dans la fenêtre
  • horloge = 0 quand on en sort

Le flow garde ainsi une logique lisible : “CP active seulement si HA autorise ET si horloge=1”.

D) Bloc “Calcul principal : SoC cible + commande Victron”

La fonction V6 fait le cœur du travail :

  1. Calcul du seuil SoC cible
  • formule : seuil = 120 - 2.5 × prod_kWh
  • forçage possible si forcage100 == on : seuil = niveau_forcé
  • arrondi au pas de 5% et bornage 0–100
  1. Activation CP1
  • si HA autorise ET horloge=1 → activation CP1 (payload=7 sur “Day=Everyday”)
  • sinon → désactivation (payload=-1)
  1. Compatibilité “Start / Duration”
  • conversion minutes → secondes, pour alimenter les settings Victron :
    • /Schedule/Charge/0/Start
    • /Schedule/Charge/0/Duration
  1. Log synthétique
  • un message unique, lisible, qui affiche : SoC actuel, seuil, forçage, durée HC, état horloge, et sortie effective.

E) Bloc “Écriture des settings dans Venus OS”

Les nœuds victron-output-ess écrivent directement dans Venus OS :

  • Validation CP (Day) : /Settings/CGwacs/BatteryLife/Schedule/Charge/0/Day
  • Heure début : /Settings/CGwacs/BatteryLife/Schedule/Charge/0/Start
  • Durée : /Settings/CGwacs/BatteryLife/Schedule/Charge/0/Duration
  • Cible SoC : /Settings/CGwacs/BatteryLife/Schedule/Charge/0/Soc
  • (option) AllowDischarge / autoconsommation : /Settings/CGwacs/BatteryLife/Schedule/Charge/0/AllowDischarge

F) Bloc “MQTT sortant pour Home Assistant”

Pour supervision et affichage HA, le flow publie aussi :

  • mp2/dess_remy/cible_soc
  • mp2/multiplus2/valide_cp (converti en on/off via un mapping)
  • mp2/dess_remy/h_debut (format HH:MM)
  • mp2/dess_remy/duree (format HH:MM)

Détails techniques (extraits utiles)

1) Normalisation VRM → kWh (exemple)

// Extrait la prévision PV (Wh) -> kWh arrondi
const d = msg.payload;
let totalWh = 0;

if (d && d.totals && d.totals.vrm_pv_inverter_yield_fc != null) {
  const v = Number(d.totals.vrm_pv_inverter_yield_fc);
  if (Number.isFinite(v)) totalWh = v;
}

let totalKWh = Math.round(totalWh / 1000);
msg.payload = totalKWh;
flow.set("previmo", totalKWh);
return msg;

2) Somme des prévisions (MPPT + onduleur)

let p = Number(flow.get('previmo')) || 0;
let c = Number(flow.get('previmppt1')) || 0;
msg.payload = p + c;
return msg;

3) Calcul SoC cible + activation CP (principe)

  • seuil = 120 - 2.5 × prod
  • arrondi à 5%
  • forçage si besoin
  • activation CP seulement si HA autorise + horloge active

Dashboard Node red:

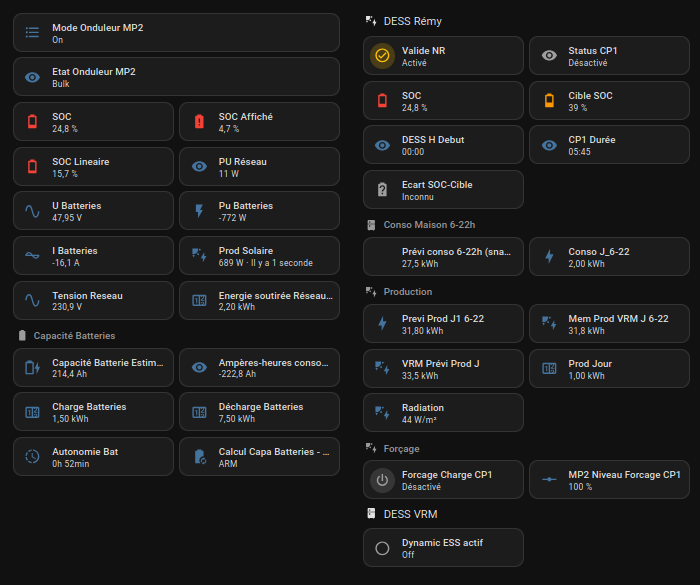

Intégration avec Home Assistant

Le broker MQTT (Home Assistant) reçoit :

  • les prévisions prod_* (très utiles pour tableaux de bord et automations)
  • la cible SoC retenue
  • l’état CP (on/off)
  • la durée et l’heure début en format HH:MM
  • le log texte (optionnel, très pratique en debug)

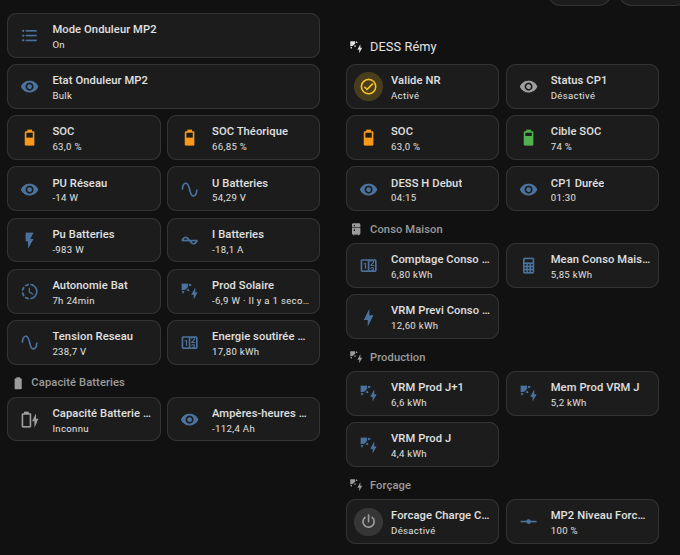

On ci-dessous le résultat d’une charge nocturne, la charge programmée démarre vers 1:00 pour se terminer avant 6:00

Côté HA, tu peux :

  • créer des sensor MQTT pour prod_total, cible_soc, duree, etc.
  • utiliser input_boolean / input_number pour validcp, forcage100, niveauforcagecp1, et publier vers les topics ha/mp2/cp/....

Fichier victron.yaml permettant de récuperer les mqtt:

mqtt:
  sensor:
  # MQTT

    - name: "MP2 SOC theorique par MQTT"
      unique_id: mp2_soc_theorique_par_mqtt"
      state_topic: "mp2/batteries/soc_theorique"
      unit_of_measurement: '%'
      device_class: battery
      state_class: measurement

    - name: "MP2 VALIDE CP MQTT"
      unique_id: mp2_valide_cp_par_mqtt"
      state_topic: "mp2/multiplus2/valide_cp"

    - name: "Capacité Batterie Estimée par NR"
      state_topic: "mp2/batteries/capacity_est_ah"
      unit_of_measurement: "Ah"
      icon: mdi:battery-charging-outline
      state_class: measurement

      # DESS Remy
    - name: "MP2 Prod VRM TOTAL MQTT"
      unique_id: mp2_prod_vrm_total_mqtt"
      state_topic: "mp2/dess_remy/prod_total"
      unit_of_measurement: 'kW'
      device_class: power
      state_class: measurement

    - name: "MP2 Cible SOC par MQTT"
      unique_id: mp2_cible_soc_par_mqtt"
      state_topic: "mp2/dess_remy/cible_soc"
      unit_of_measurement: '%'
      device_class: battery
      state_class: measurement

    - name: "MP2 DESS Difference Cible-SOC"
      unique_id: mp2_difference_cible_soc"
      state_topic: "mp2/dess_remy/diff_soc"
      unit_of_measurement: '%'
      device_class: battery
      state_class: measurement

    - name: "MP2 DESS H_Debut DESS Remy"
      unique_id: mp2_dess_h_debut"
      state_topic: "mp2/dess_remy/h_debut"

    - name: "MP2 DESS Durée DESS Remy"
      unique_id: mp2_dess_duree"
      state_topic: "mp2/dess_remy/duree"

Palettes utilisées

Pour reproduire ce flow, installer :

  • node-red-contrib-victron (entrées/sorties ESS vers Venus OS)
  • palette VRM API (nœud vrm-api utilisé pour récupérer les stats/prévisions VRM)
  • node-red-contrib-bigtimer (horloge 22h → 6h)
  • node-red-dashboard (ui_gauge, ui_text, ui_chart)
  • node-red-node-mqtt (mqtt in/out)

Conclusion

Avec ce flow, je ne me contente plus de “collecter des données” : j’intègre la prévision (VRM), la décision (calcul cible SoC) et l’action (écriture CP1 dans Victron), tout en gardant une supervision propre via MQTT/Home Assistant.

Annexe JSON

Flux JSON à copier/coller :

[
    {
