Intro

Description des automatismes mis en place dans la gestion de mes volets roulants

Je possède deux types de volets roulants:
– Volets Somfy protocole RTS
– Volets Filaires

Les volets Somfy sont équipés de moteurs intégrés avec un protocole RTS, les volets filaires sont pilotés par des modules Chacon DIO, dans les deux cas, je les ai associé à HA via une passerelle RFXtrx433E branchée en USB sur le NUC.

L’intégration HA utilisée est RFXCOM RFXtrx. Il faut bien lire la documentation qui explique comment générer le code associé au volet puis comment l’intégrer dans HA.

Modes de fonctionnement

J’utilise 3 modes de fonctionnement sélectionnable via un « input.select »:

Auto Hiv

L’hiver, nous préférons fermer les volets des la tombée de la nuit afin de se préserver du froid. L’ouverture et la fermeture sont basés sur la luminosité extérieure et la position du soleil. La luminosité est mesuré par un ESP8266-01 sous ESPHOME équipé d’une cellule bh1750.

Les seuils de luminosité haut et bas sont mémorisés dans des input_number, un pour la fermeture et un pour l’ouverture, respectivement 5 et 30 lux dans mon cas.

La position du soleil « sous » ou « au-dessus » de l’horizon est donnée par le sensor « sun.sun ». Ces deux sensors permettent de détecter que le soleil se couche ou se lève.

La combinaison logique des ces deux informations permet de calculer un « input_boolean.nuit_jour » avec nuit=off et jour=on, (voir le code ci-après), qui servira dans mon automatisme principal .

- id: '1610184966825'
  alias: Volet_Boolean Nuit/Jour
  description: ''
  trigger:
  - platform: template
    value_template: '{{ states(''sensor.luminosite'' )|float > states(''input_number.luminosite_seuil_haut'')|float
      and is_state("sun.sun", "above_horizon") }}'
    id: nuit->jour
  - platform: template
    value_template: '{{ states(''sensor.luminosite'')|float < states(''input_number.luminosite_seuil_bas'')|float
      and is_state("sun.sun", "below_horizon") }}'
    id: jour->nuit
  condition: []
  action:
  - choose:
    - conditions:
      - condition: trigger
        id: nuit->jour
      sequence:
      - service: input_boolean.turn_on
        target:
          entity_id: input_boolean.nuit_jour
    - conditions:
      - condition: trigger
        id: jour->nuit
      sequence:
      - service: input_boolean.turn_off
        target:
          entity_id: input_boolean.nuit_jour
    default: []
  mode: single

Auto ETE

L’été nous restons dehors plus tard et nous nous couchons bien après la tombée de la nuit. Après avoir essayé plusieurs solutions basées sur le mode hiver, j’ai préféré simplifier le fonctionnement: L’ouverture et la fermeture seront pilotés par deux « input_datetime »: Un pour l’ouverture et le deuxième pour la fermeture.

Absent

J’utilise ce mode lorsque nous nous absentons de la maison pour une longue période. Pour faire simple, je ferme tous les volets et j’ouvre celui du salon pour donner un peu de vie et de clarté en fonction du boolean « jour/nuit ».

Scripts.

La liste des volets à ouvrir et à fermer est programmée dans des scripts, les scripts sont appelés par l’automatisme en fonction du mode de fonctionnement utilisé.

Les scripts « ouverture volet » et « fermeture volets » sont décrits ci_après. A noter que les ordres envoyés aux volets sont espacés de 2 secondes afin de s’assurer que la passerelle RFXtrx ne sature pas.

Un fonctionnement spécifique à l’ouverture est réservé à trois pièces (2 chambres amis et bureau), il est conditionné par un input_boolean précisant si les chambres et le bureau sont occupés.

Mode Auto Hiv et Auto Ete

Ouverture Volets

ouverture_volet:
  alias: ouverture_volet
  sequence:
  - service: cover.open_cover
    data: {}
    entity_id: cover.salon_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    entity_id: cover.cuisine
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    entity_id: cover.sdb
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    entity_id: cover.volet_sam
  - service: script.volets_bureau
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: script.ouverture_volets_chamb_nord
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: script.ouverture_volet_chamb_sud
  mode: single
  icon: mdi:shuttle

Fermeture Volets

fermeture_volet:
  alias: fermeture_volet
  sequence:
  - service: cover.open_cover
    data: {}
    entity_id: cover.bureau_gauche
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.bureau_droit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.salon_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.sdb
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.amis_nord
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.parents_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.volet_parents_grand
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.amis_sud_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.volet_amis_sud_grand
  mode: single
  icon: mdi:shuttle

Mode Absent

Ouverture Volets

ouverture_volet_absent:
  alias: ouverture_volet_absent
  sequence:
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.bureau_droit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    target:
      entity_id: cover.bureau_gauche
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.salon_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.cuisine
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.sdb
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.amis_nord
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.parents_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.volet_parents_grand
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.volet_sam
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.volet_amis_sud_grand
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.open_cover
    data: {}
    target:
      entity_id: cover.amis_sud_petit
  mode: single
  icon: mdi:shuttle

Fermeture Volets

fermeture_volet_absent:
  alias: fermeture_volet_absent
  sequence:
  - service: cover.open_cover
    data: {}
    entity_id: cover.bureau_gauche
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.bureau_droit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.salon_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    target:
      entity_id:
      - cover.cuisine
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.sdb
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.amis_nord
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.parents_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.volet_parents_grand
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.amis_sud_petit
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.volet_amis_sud_grand
  - delay:
      hours: 0
      minutes: 0
      seconds: 2
      milliseconds: 0
  - service: cover.close_cover
    data: {}
    entity_id: cover.volet_sam
  mode: single
  icon: mdi:shuttle

Déclaration des entités

Vous trouverez ci-après le fichier volet.yam.
Dans ce fichier vous retrouverez la déclaration des différentes variables utilisées.

Code source à télécharger

input_boolean:
  # Gestion volets
  presence_amis_bureau:
    name: Presence Amis Bureau
    icon: mdi:account

  presence_amis_ch_sud:
    name: Presence Amis Chamb Sud
    icon: mdi:account

  presence_amis_ch_nord:
    name: Presence Amis Chamb Nord
    icon: mdi:account

# Calcul Jour/nuit selon luminosite et position du soleil sur l'horizon
  nuit_jour:
    name: Nuit=0/Jour=1
    icon: mdi:weather-sunny


# Calcul Jour/nuit selon luminosite
  val_automs_soleil:
    name: Valid Automs Volet Soleil
    icon: mdi:weather-sunny

input_datetime:
  # Horaires Volets ete
  horaire_ete_volet_ouv:
    name: Horaire ete volets ouverture
    has_date: false
    has_time: true
  horaire_ete_volet_ferm:
    name: Horaire ete volets fermeture
    has_date: false
    has_time: true

input_number:
# Consigne Min/max luminosité
# gestion volet: Calcul du Input_boolean Nuit/jout
    luminosite_seuil_bas:
      name: Lum. seuil bas
      mode: box
      min: 0
      max: 10
      unit_of_measurement: "Lux"
      icon: mdi:weather-sunny
    luminosite_seuil_haut:
      name: Lum. seuil haut
      mode: box
      min: 10
      max: 50
      unit_of_measurement: "Lux"
      icon: mdi:weather-sunny
# gestion volet: Niveau Ensoleilement ouv auto volet
    radiation_seuil_ferm_volet:
      name: Radiat seuil ferm volets
      mode: box
      min: 0
      max: 1200
      unit_of_measurement: "w/m2"
      icon: mdi:weather-sunny

input_select:
  volets:
    name: Volets
    icon: mdi:window-shutter
    options:
      - Auto Hiv
      - Auto Ete
      - Absent
      - Arret
cover:
# Convertion TC volet Amis grand en cover
  - platform: template
    covers:
      volet_amis_sud_grand:
        friendly_name: "Volet amis sud grand"
        open_cover:
          service: switch.turn_on
          data:
            entity_id: switch.tc_volet_amis_grand
        close_cover:
          service: switch.turn_off
          data:
            entity_id: switch.tc_volet_amis_grand
        icon_template: >-
          {% if is_state('switch.tc_volet_amis_grand', 'on') %}
            mdi:garage-open
          {% else %}
            mdi:garage
          {% endif %}
  # Convertion TC volet SaM en cover
      volet_sam:
        friendly_name: "Volet SaM"
        open_cover:
          service: switch.turn_on
          data:
            entity_id: switch.tc_volet_sam
        close_cover:
          service: switch.turn_off
          data:
            entity_id: switch.tc_volet_sam
        icon_template: >-
          {% if is_state('switch.tc_volet_sam', 'on') %}
            mdi:garage-open
          {% else %}
            mdi:garage
          {% endif %}
  # Convertion TC parents grand
      volet_parents_grand:
        friendly_name: "Volet Parents Grand"
        open_cover:
          service: switch.turn_on
          data:
            entity_id: switch.tc_chamb_parents
        close_cover:
          service: switch.turn_off
          data:
            entity_id: switch.tc_chamb_parents
        icon_template: >-
          {% if is_state('switch.tc_chamb_parents', 'on') %}
            mdi:garage-open
          {% else %}
            mdi:garage
          {% endif %}

Automatisme principal

Vous trouverez ci après le descriptif fonctionnel de l’automatisme principal.
J’utilise la fonction »choose » qui, combinée aux déclencheurs sur « balise »(id), permet de simplifier le codage.

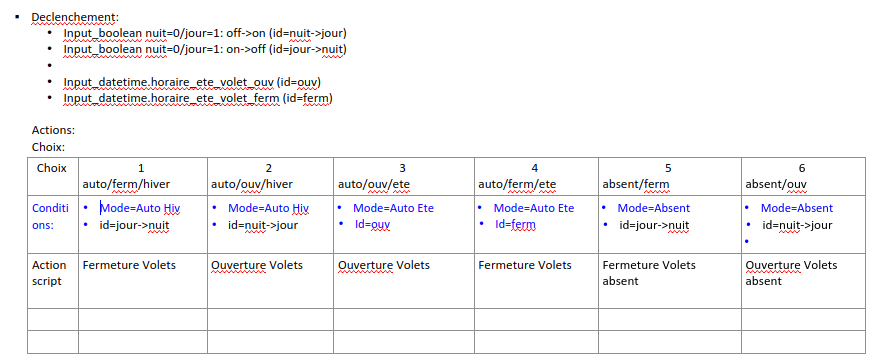

Descriptif fonctionnel

Choix gestion nb de chambres:

Calcul du input_boolean nuit/jour

Codage

Vous trouverez ci-après le code .yaml de l’automatisation correspondant au descriptif fonctionnel:

- id: '1632989157968'
  alias: Volet_Automatismes
  description: Ete/Hiver/Absent
  trigger:
  - platform: state
    entity_id: input_boolean.nuit_jour
    from: 'on'
    to: 'off'
    id: jour->nuit
  - platform: time
    at: input_datetime.horaire_ete_volet_ouv
    id: ouv
  - platform: time
    at: input_datetime.horaire_ete_volet_ferm
    id: ferm
  - platform: state
    entity_id: input_boolean.nuit_jour
    id: nuit->jour
    from: 'off'
    to: 'on'
  condition: []
  action:
  - choose:
    - conditions:
      - condition: state
        entity_id: input_select.volets
        state: Auto Hiv
      - condition: trigger
        id: jour->nuit
      sequence:
      - service: script.fermeture_volet
    - conditions:
      - condition: state
        entity_id: input_select.volets
        state: Auto Hiv
      - condition: trigger
        id: nuit->jour
      sequence:
      - service: script.ouverture_volet
    - conditions:
      - condition: state
        entity_id: input_select.volets
        state: Auto Ete
      - condition: trigger
        id: ouv
      sequence:
      - service: script.ouverture_volet
    - conditions:
      - condition: state
        entity_id: input_select.volets
        state: Auto Ete
      - condition: trigger
        id: ferm
      sequence:
      - service: script.fermeture_volet
    - conditions:
      - condition: state
        entity_id: input_select.volets
        state: Absent
      - condition: state
        entity_id: input_boolean.nuit_jour
        state: 'off'
      sequence:
      - service: script.fermeture_volet_absent
    - conditions:
      - condition: state
        entity_id: input_select.volets
        state: Absent
      - condition: state
        entity_id: input_boolean.nuit_jour
        state: 'on'
      sequence:
      - service: script.ouverture_volet_absent
    default: []
  mode: single

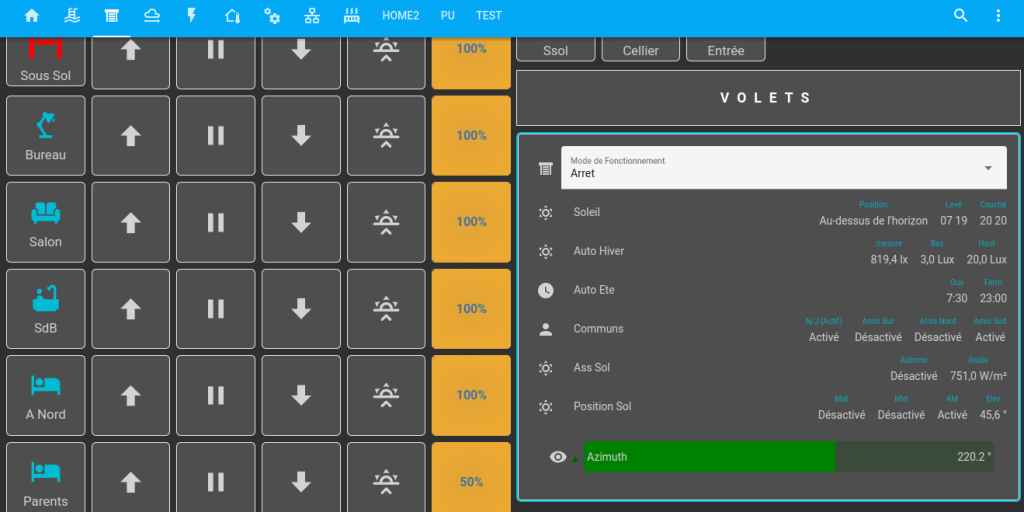

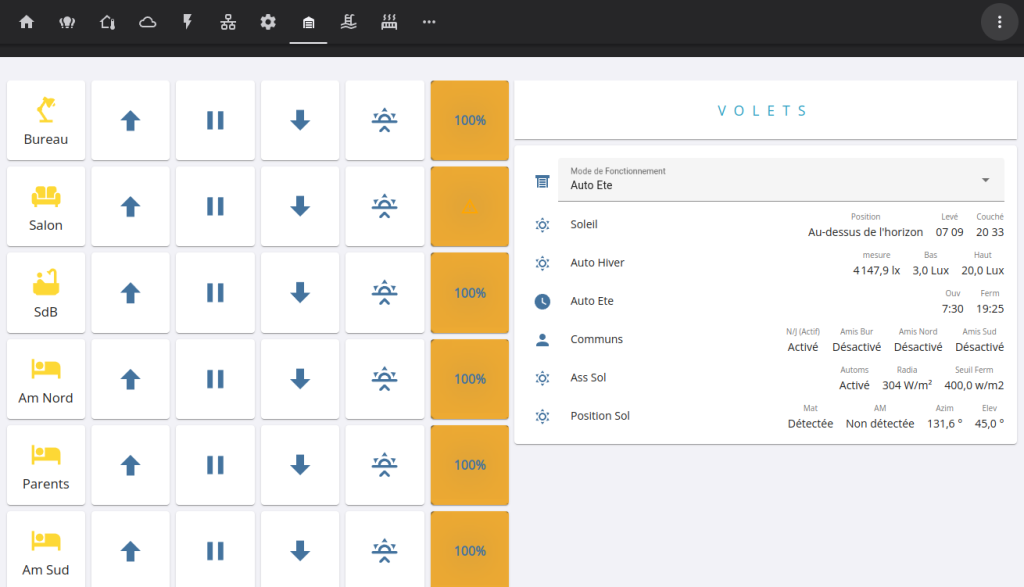

Interface lovelace

Interfaces simples regroupant les informations nécessaires au pilotage, à la surveillance et au paramétrage de la fonction « Volets »

Exemple de code:

cards:
  - cards:
      - cards:
          - entity: cover.porte_garage
            label: Garage
            operator: default
            show_icon: true
            show_label: true
            show_name: false
            size: 70%
            state:
              - color: green
                icon: mdi:garage
                operator: template
                value: >
                  [[[ return
                  states['cover.porte_garage'].attributes.current_position < 1
                  ]]]
              - color: red
                icon: mdi:garage-open
                operator: template
                value: >
                  [[[ return
                  states['cover.porte_garage'].attributes.current_position > 99
                  ]]]
              - color: orange
                icon: mdi:garage-alert
                operator: default
            tap_action:
              action: more-info
            theme: Mushroom
            type: custom:button-card
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id:
                  - cover.porte_garage
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.porte_garage
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.porte_garage
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id:
                  - cover.porte_garage
            type: button
          - elements:
              - attribute: current_position
                entity: cover.porte_garage
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: cover.porte_sous_sol
            label: Sous Sol
            show_icon: true
            show_label: true
            show_name: false
            size: 70%
            state:
              - color: green
                icon: mdi:garage
                operator: template
                value: >
                  [[[ return
                  states['cover.porte_sous_sol'].attributes.current_position < 1
                  ]]]
              - color: red
                icon: mdi:garage-open
                operator: template
                value: >
                  [[[ return
                  states['cover.porte_sous_sol'].attributes.current_position >
                  99 ]]]
              - color: orange
                icon: mdi:garage-alert
                operator: default
            tap_action:
              action: more-info
            theme: Mushroom
            type: custom:button-card
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id:
                  - cover.porte_sous_sol
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.porte_sous_sol
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.porte_sous_sol
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id:
                  - cover.porte_sous_sol
            type: button
          - elements:
              - attribute: current_position
                entity: cover.porte_sous_sol
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: group.volets_bureau
            hold_action:
              action: none
            icon: mdi:desk-lamp
            name: Bureau
            show_icon: true
            show_name: true
            show_state: false
            tap_action:
              action: more-info
            type: button
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_gauche_p
                  - cover.volet_droit_p
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_droit_p
                  - cover.volet_gauche_p
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_droit_p
                  - cover.volet_gauche_p
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id:
                  - cover.volet_droit_p
                  - cover.volet_gauche_p
            type: button
          - elements:
              - attribute: current_position
                entity: cover.volet_droit_p
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: group.volets_salon_cuisine
            hold_action:
              action: none
            icon: mdi:sofa
            name: Salon
            show_icon: true
            show_name: true
            show_state: false
            tap_action:
              action: more-info
            type: button
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_sam_grand_p
                  - cover.volet_salon_p
                  - cover.volet_cuisine_p
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_salon_p
                  - cover.volet_cuisine_p
                  - cover.volet_sam_grand_p
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_salon_p
                  - cover.volet_sam_grand_p
                  - cover.volet_cuisine_p
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id:
                  - cover.volet_salon_p
                  - cover.volet_sam_grand_p
                  - cover.volet_cuisine_p
            type: button
          - elements:
              - attribute: current_position
                entity: cover.volet_sam_grand_p
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: cover.volet_sdb_p
            hold_action:
              action: none
            icon: mdi:bathtub
            name: SdB
            show_icon: true
            show_name: true
            show_state: false
            tap_action:
              action: more-info
            type: button
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id: cover.volet_sdb_p
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id: cover.volet_sdb_p
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id: cover.volet_sdb_p
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id: cover.volet_sdb_p
            type: button
          - elements:
              - attribute: current_position
                entity: cover.volet_sdb_p
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: cover.volet_amis_nord_p
            hold_action:
              action: none
            icon: mdi:bed
            name: A Nord
            show_icon: true
            show_name: true
            show_state: false
            tap_action:
              action: more-info
            type: button
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id: cover.volet_amis_nord_p
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_amis_nord_p
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_amis_nord_p
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id: cover.volet_amis_nord_p
            type: button
          - elements:
              - attribute: current_position
                entity: cover.volet_amis_nord_p
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: group.volets_parents
            hold_action:
              action: none
            icon: mdi:bed
            name: Parents
            show_icon: true
            show_name: true
            show_state: false
            tap_action:
              action: more-info
            type: button
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_parents_grand_p
                  - cover.volet_ch_parent_p
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_ch_parent_p
                  - cover.volet_parents_grand_p
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_parents_grand_p
                  - cover.volet_ch_parent_p
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id:
                  - cover.volet_ch_parent_p
                  - cover.volet_parents_grand_p
            type: button
          - elements:
              - attribute: current_position
                entity: cover.volet_parents_grand_p
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
      - cards:
          - entity: group.volets_amis_sud
            hold_action:
              action: none
            icon: mdi:bed
            name: A Sud
            show_icon: true
            show_name: true
            show_state: false
            tap_action:
              action: more-info
            type: button
          - icon: mdi:arrow-up-bold
            name: Ouvrir
            show_icon: true
            show_name: false
            tap_action:
              action: call-service
              service: cover.open_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_amis_sud_grand_p
                  - cover.volet_amis_sud_p
            type: button
          - icon: mdi:pause
            name: Stop
            show_name: false
            tap_action:
              action: call-service
              service: cover.stop_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_amis_sud_grand_p
                  - cover.volet_amis_sud_p
            type: button
          - icon: mdi:arrow-down-bold
            name: Fermer
            show_name: false
            tap_action:
              action: call-service
              service: cover.close_cover
              service_data: {}
              target:
                entity_id:
                  - cover.volet_amis_sud_grand_p
                  - cover.volet_amis_sud_p
            type: button
          - icon: mdi:weather-sunset-up
            name: Soleil
            show_name: false
            tap_action:
              action: call-service
              service: cover.set_cover_position
              service_data:
                position: 50
              target:
                entity_id:
                  - cover.volet_amis_sud_p
                  - cover.volet_amis_sud_grand_p
            type: button
          - elements:
              - attribute: current_position
                entity: cover.volet_amis_sud_grand_p
                style:
                  color: '#44739E'
                  font-size: 16px
                  font-weight: bold
                  left: 50%
                  top: 50%
                suffix: '%'
                tap_action:
                  action: more-info
                type: state-label
            image: /local/images/carre_orange.png
            type: picture-elements
            view_layout:
              position: sidebar
        columns: 6
        square: true
        type: grid
    type: vertical-stack
  - cards:
      - name: PORTES
        styles:
          card:
            - text-transform: uppercase
            - color: white
            - font-size: 125%
            - border-radius: 0%
            - font-weight: bold
            - letter-spacing: 10px
        type: custom:button-card
      - cards:
          - entity: binary_sensor.detecteur_petite_porte_sous_sol
            name: Ssol
            show_icon: true
            show_label: false
            show_name: true
            size: 70%
            state:
              - color: green
                icon: mdi:door
                value: 'off'
              - color: red
                icon: mdi:door-open
                value: 'on'
              - color: yellow
                icon: mdi:door
                operator: default
                styles:
                  card:
                    - animation: blink 2s ease infinite
            tap_action:
              action: more-info
            theme: Mushroom
            type: custom:button-card
          - entity: binary_sensor.porte_cellier
            name: Cellier
            show_icon: true
            show_label: false
            show_name: true
            size: 70%
            state:
              - color: green
                icon: mdi:door
                value: 'off'
              - color: red
                icon: mdi:door-open
                value: 'on'
              - color: yellow
                icon: mdi:door
                operator: default
                styles:
                  card:
                    - animation: blink 2s ease infinite
            tap_action:
              action: more-info
            theme: Mushroom
            type: custom:button-card
          - entity: binary_sensor.detecteur_porte_entree
            name: Entrée
            show_icon: true
            show_label: false
            show_name: true
            size: 70%
            state:
              - color: green
                icon: mdi:door
                value: 'off'
              - color: red
                icon: mdi:door-open
                value: 'on'
              - color: yellow
                icon: mdi:door
                operator: default
                styles:
                  card:
                    - animation: blink 2s ease infinite
            tap_action:
              action: more-info
            theme: Mushroom
            type: custom:button-card
        columns: 6
        square: true
        type: grid
      - name: VOLETS
        styles:
          card:
            - text-transform: uppercase
            - color: white
            - font-size: 125%
            - border-radius: 0%
            - font-weight: bold
            - letter-spacing: 10px
        type: custom:button-card
      - entities:
          - entity: input_select.volets
            name: Mode de Fonctionnement
          - entities:
              - entity: sun.sun
                name: Position
              - entity: sensor.heure_leve_soleil
                name: Levé
              - entity: sensor.heure_couche_soleil
                name: Couché
            entity: sensor.heure_leve_soleil
            icon: mdi:weather-sunny
            name: Soleil
            show_state: false
            type: custom:multiple-entity-row
          - entities:
              - entity: sensor.bh1750_illuminance
                name: mesure
              - entity: input_number.luminosite_seuil_bas
                name: Bas
              - entity: input_number.luminosite_seuil_haut
                name: Haut
            entity: input_number.luminosite_seuil_bas
            icon: mdi:weather-sunny
            name: Auto Hiver
            show_state: false
            type: custom:multiple-entity-row
          - entities:
              - entity: input_datetime.horaire_ete_volet_ouv
                name: Ouv
              - entity: input_datetime.horaire_ete_volet_ferm
                name: Ferm
            entity: input_datetime.horaire_ete_volet_ouv
            icon: mdi:clock
            name: Auto Ete
            show_state: false
            type: custom:multiple-entity-row
          - entities:
              - entity: input_boolean.nuit_jour
                name: N/J (Actif)
              - entity: input_boolean.presence_amis_bureau
                name: Amis Bur
              - entity: input_boolean.presence_amis_ch_nord
                name: Amis Nord
              - entity: input_boolean.presence_amis_ch_sud
                name: Amis Sud
            entity: input_boolean.nuit_jour
            icon: mdi:account
            name: Communs
            show_state: false
            type: custom:multiple-entity-row
          - entities:
              - entity: automation.4_1_3_volet_suivi_azimuth_soleil_dupliquer
                name: Automs
              - entity: sensor.vp2_radiation_moyenne
                name: Radia
            entity: sensor.vp2_radiation_moyenne
            icon: mdi:weather-sunny
            name: Ass Sol
            show_state: false
            type: custom:multiple-entity-row
          - entities:
              - entity: binary_sensor.position_soleil_matin
                name: Mat
              - entity: binary_sensor.position_soleil_midi
                name: Mid
              - entity: binary_sensor.position_soleil_am
                name: AM
              - entity: sensor.sun_elevation
                name: Elev
            entity: sensor.sun_elevation
            icon: mdi:weather-sunny
            name: Position Sol
            show_state: false
            type: custom:multiple-entity-row
          - align: split
            color: grey
            columns: 1
            entities:
              - entity: sensor.sun_azimuth
            max: '360'
            name: Azimuth
            severity:
              - color: green
                from: '103'
                to: '137'
              - color: green
                from: 160
                to: 239
            show_icon: true
            style: |
              ha-card {
                --paper-card-background-color: 'rgba(0, 0, 0, 0.0)';
                --ha-card-background: "rgba(0, 0, 0, 0.0)";
                --ha-card-box-shadow: 'none';
              }
            title_position: inside
            type: custom:bar-card
            unit_of_measurement: °
        how_header_toggle: false
        style: |
          ha-card {
            border: solid 2px var(--primary-color);
          }
        type: entities
    type: vertical-stack
items_classes: col-xs-12 col-sm-6 col-md-6 col-lg-6
padding: true
type: custom:dwains-flexbox-card

Conclusion:

Un fonctionnement basique qui n’a rien d’exceptionnel mais bougrement pratique. J’espère que cela donnera des idées à certain d’entre vous.

Article en lien avec cette publication

HA-Asservissement des volets à la position du soleil
